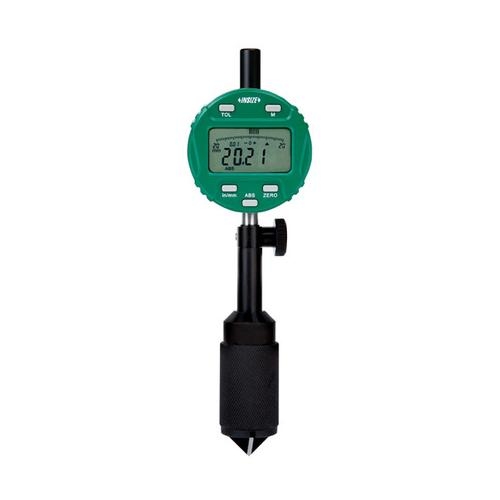

INSIZE 2942-20 Digital Internal Chamfer Gage (0.5-20.1mm)

Range ØD: 0.5-20.1mm

Applicable angle α: 0-90°

Accuracy: ±0.02mm

Ød: 28.3mm

Measure end diameter of chamfer or taper holes

Supplied with 5mm setting ring

Resolution: 0.01mm/0.0005"

Optional accessory: data output cable (code 7315-, 7302-, 7305-)

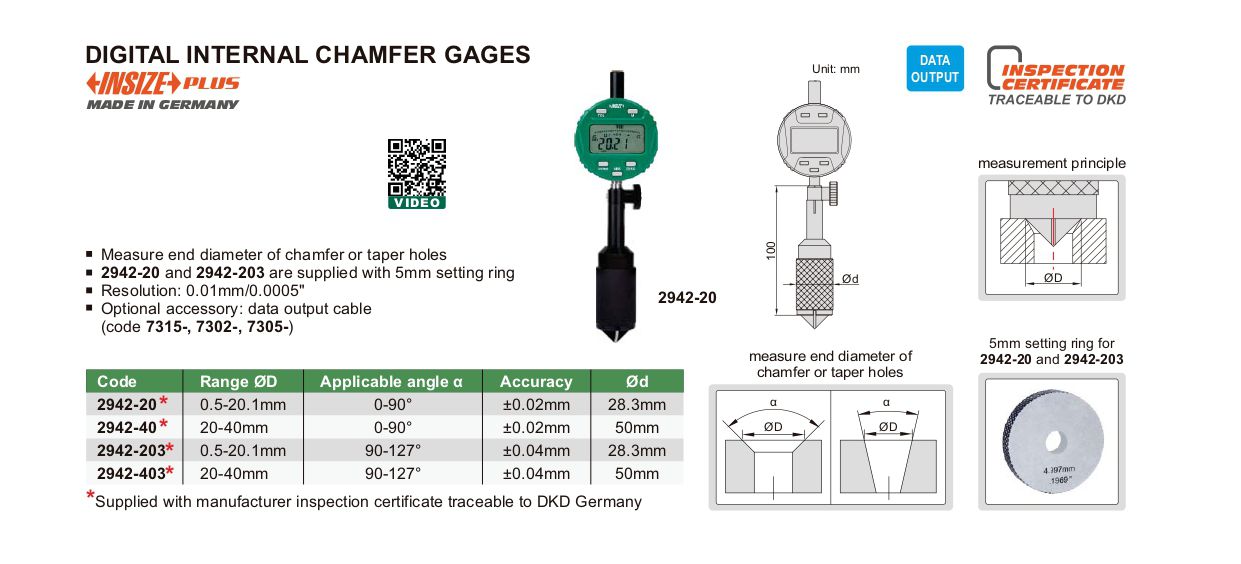

Datasheet
