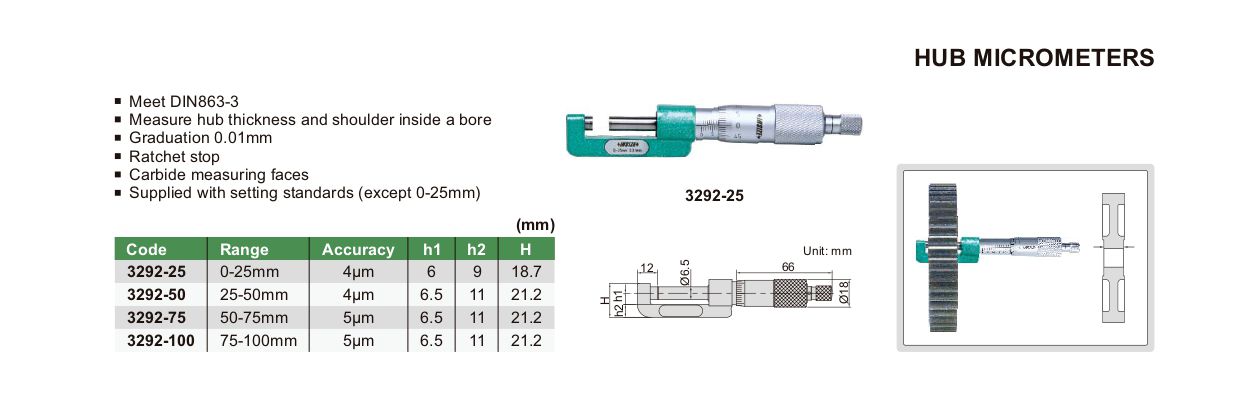

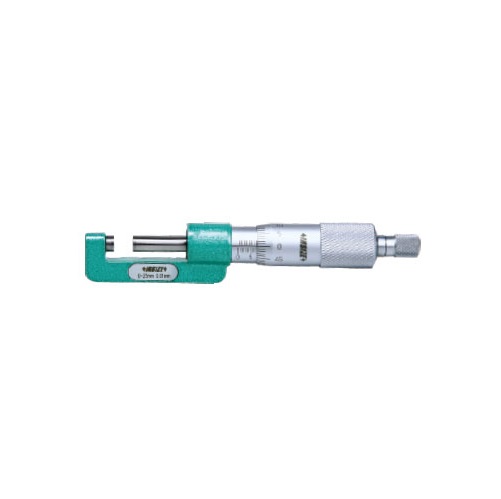

INSIZE 3292-25 Hub Micrometer (0-25mm; 0.01mm)

Range: 0-25mm

Accuracy: 4µm

Graduation: 0.01mm

h1: 6mm

h2: 9mm

H: 18.7mm

Meet DIN863-3

Measure hub thickness and shoulder inside a bore

Ratchet stop

Datasheet
