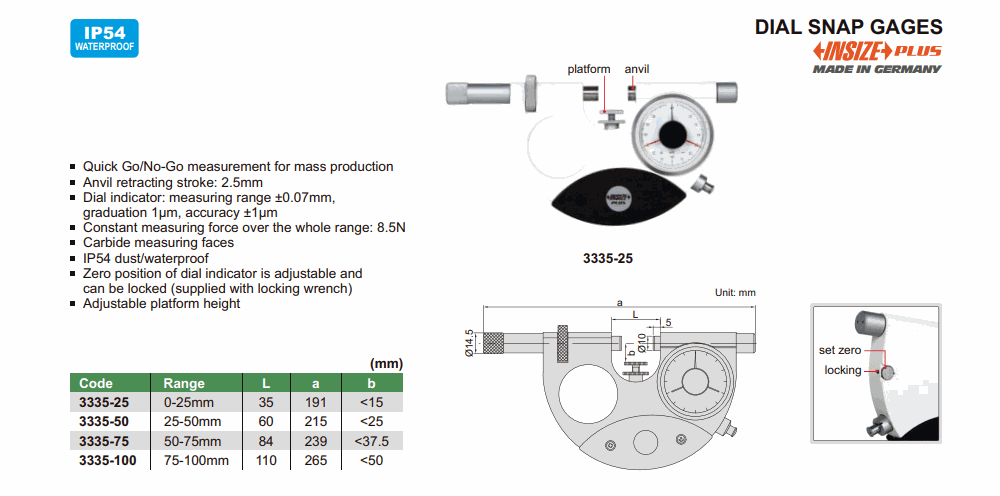

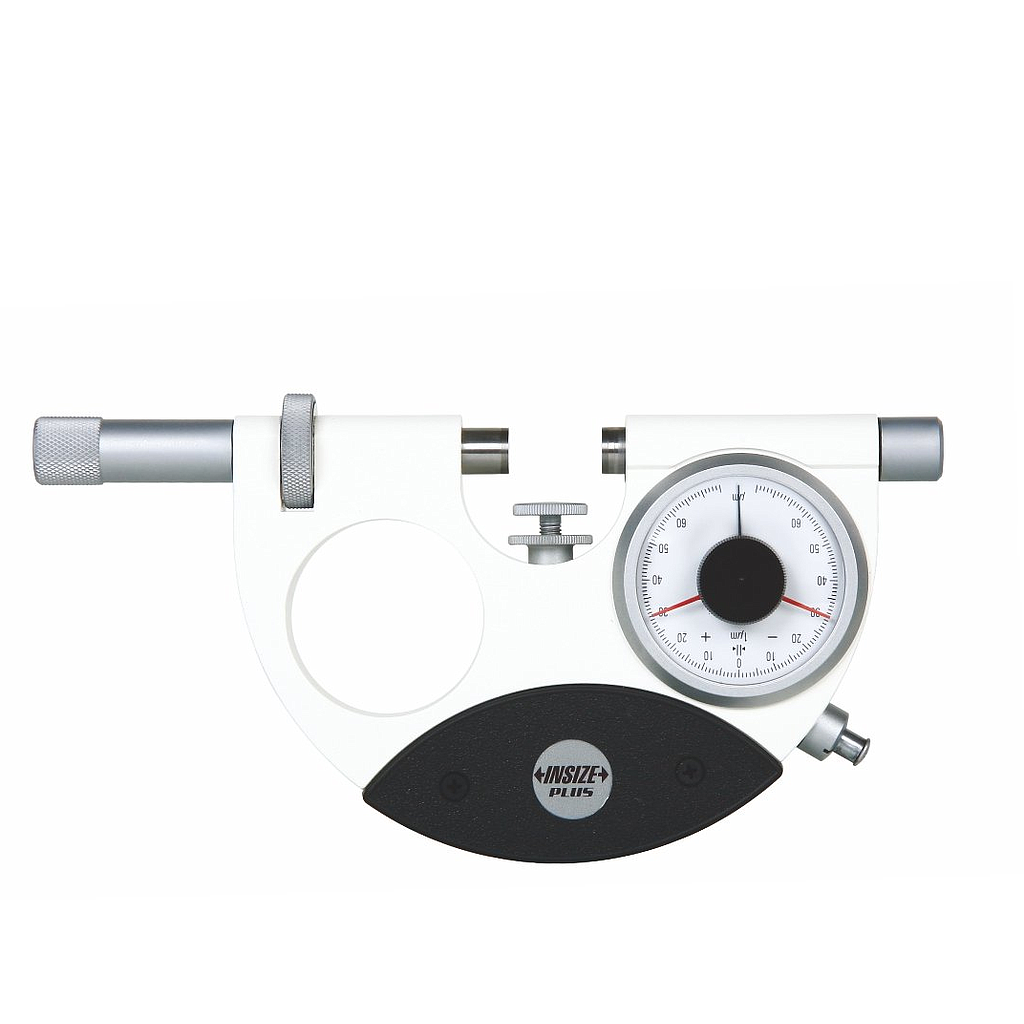

INSIZE 3335-75 Dial Snap Gage (50-75mm; 1μm; ±1μm)

Range: 50-75mm

L: 84mm

a: 239mm

b: <37.5mm

Quick Go/No-Go measurement for mass production

Anvil retracting stroke: 2.5mm

Dial indicator:

- Range: ±0.07mm

- Graduation: 1μm

- Accuracy: ±1μm

Constant measuring force over the whole range: 8.5N

IP54 dust/waterproof

Carbide measuring faces

Zero position of dial indicator is adjustable and can be locked (supplied with locking wrench)

Adjustable platform height
