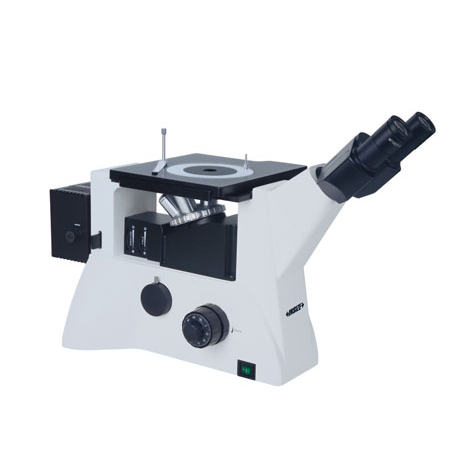

INSIZE 5103-M1000 Metallurgical Microscope (100X~1000X; bright field objectives)

Illumination: 6V/30W halogen lamp, brightness is adjustable

Objective (infinite plan achromatic): bright field objectives: 10X; 20X; 50X; 100X

Working distance: 20.2mm; 8.80mm; 3.68mm; 0.40mm

Numerical aperture: 0.25; 0.40; 0.70; 0.85

Magnification: 100X~1000X

Eyepiece (wide field): 10X (view field: ϕ22mm)

Stage:

- Double layer

- Size: 242x200mm

- Travel: 30x30mm

Pupil distance: 53~75mm

Diopter adjustment: ±5 diopter (one eyepiece)

Power supply: 220V, 50/60Hz

Dimension: 614x250x394mm

Weight: 13kg

Standard delivery:

- Main unit: 1pc

- Anti- dust cover: 1pc

- Polarizer and analyzer: 1pc

Optional accessory:

- Bright field objective

- Digital camera

- Camera adpater
