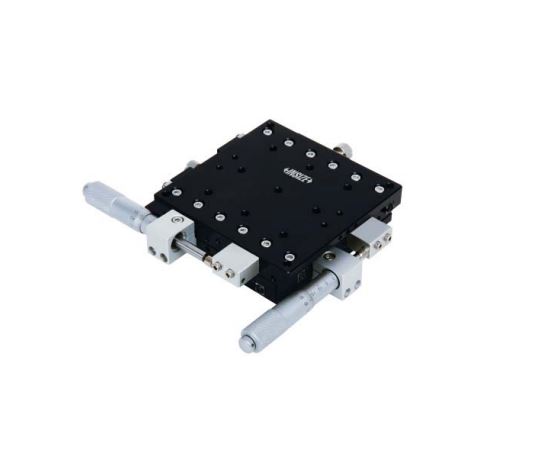

INSIZE 6584-1252 XY 轴位移平台 (± 12.5mm, 0.02mm)

Features:

Cross roller guides, achieve high precision and smooth movement

Stages made of aluminum alloy

Micrometer location: Middle

Specifications:

XY-axis displacement: ±12.5mm

Parallelism of top surface to bottom: 0.08mm

Micrometer graduation: 0.01mm

Micrometer accuracy: 0.02mm

Maximum load: 180N (18.4kgf)

Stage size: 125x125mm

Weight: 2.8kg
