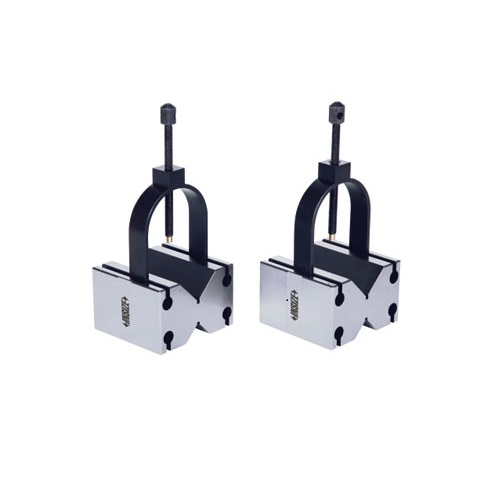

INSIZE 6803-2 V槽块 (2块/套)

Size (LxWxH): 65x70x45mm

Range of shafts (Ød): 4-47mm

Parallelism of both V grooves to top, bottom, left, right sides: 5µm

Squareness of both V grooves to front and back sides: 5µm

Height difference of a matched pair: 5µm

Hold cylindrical workpieces for inspection and machining

Two V-blocks per set

Made of alloy steel

Hardened to HRC60±2

V groove on the top for large shafts

V groove on the bottom for small shafts

Detail
