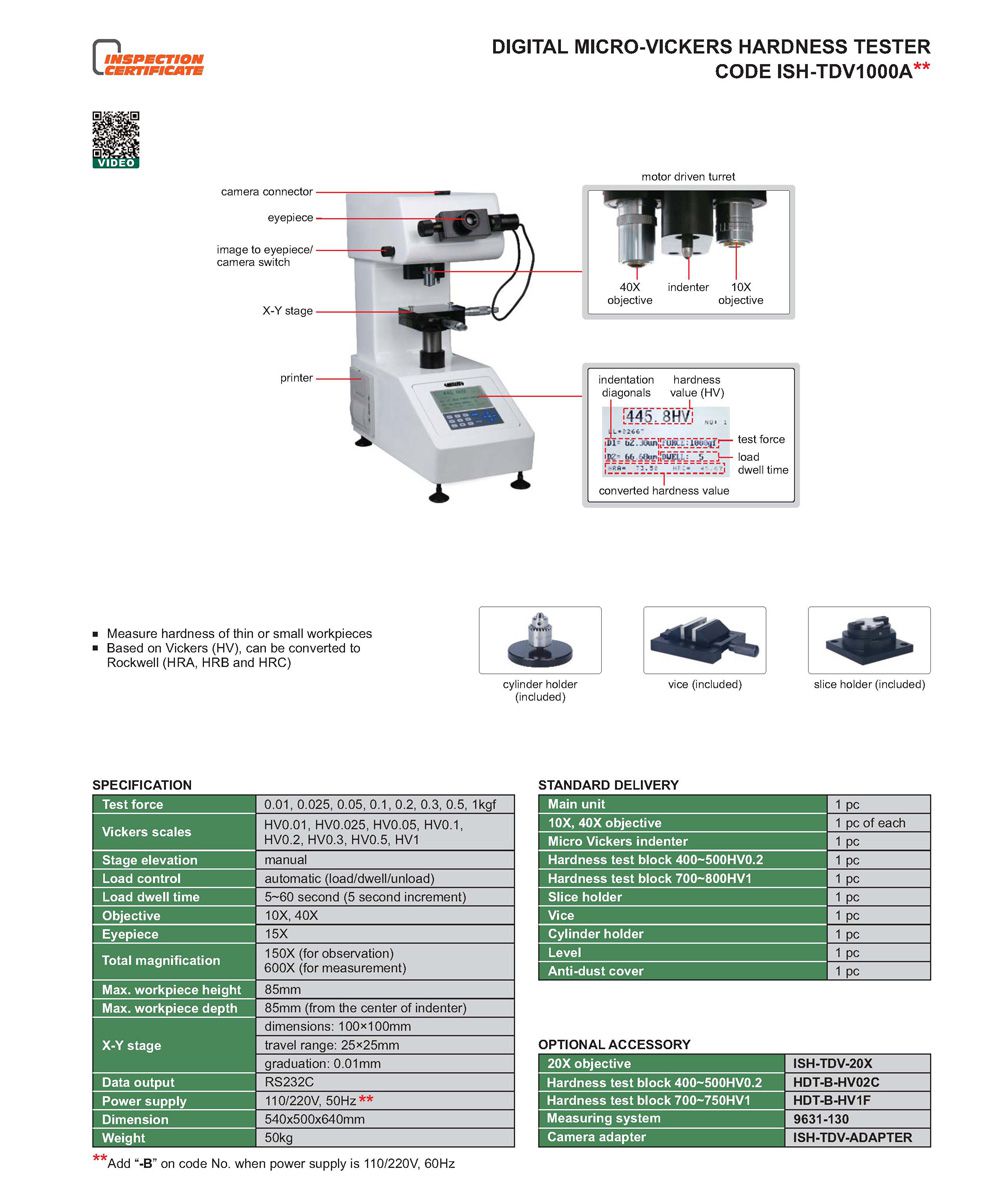

INSIZE ISH-TDV1000A 数显显微维氏硬度计 (1kgf)

Test force: 0.01; 0.025; 0.05; 0.1; 0.2; 0.3; 0.5; 1kgf

Vickers scales: HV0.01; HV0.025; HV0.05; HV0.1; HV0.2; HV0.3; HV0.5; HV1

Stage elevation: manual

Load control: automatic (load/dwell/unload)

Load dwell time: 5~60 sec (5 second increment)

Objective: 10X, 40X

Eyepiece: 15X

Total magnification:

- 150X (for observation)

- 600X (for measurement)

Max. workpiece height: 160mm

Max. workpiece depth: 140mm (from the center of indente)

X-Y stage:

- Dimension: 100x100mm

- Travel range: 25x25mm

- Graduation: 0.01mm

Data output: RS232C

Power supply: 110/220V, 50Hz

Dimension: 540x500x640mm

Weight: 50kg

Standard delivery:

- Main unit: 1pc

- 10X, 40X objective: 1pc of each

- Micro Vickers indenter: 1pc

- Hardness test block 400~500HV0.2: 1pc

- Hardness test block 700~800HV1: 1pc

- Slice holder: 1pc

- Vice: 1pc

- Cylinder holder: 1pc

- Level: 1pc

- Anti-dust cover: 1pc

Optional accessory:

- 20X objective

- Hardness test block 400~500HV0.2

- Hardness test block 700~800HV1

- Measuring system

- Camera adpater
