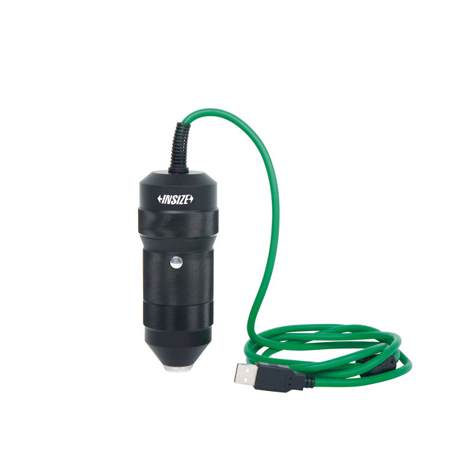

INSIZE ISHB-MSA Brinell Indentation Measuring System (16~650HB)

Applicable Brinell indenter: Φ10mm; Φ7.26mm Φ5mm; Φ4mm; Φ2.5mm

Hardness range: 16~650HB

Range of indentation diameter: Φ0.6~6mm

Test force: 62.5; 100; 125; 187.5; 250; 500; 750; 1000; 1500; 3000kgf

Hardness resolution: 1HB

Diameter measuring resolution: 0.001mm

Diameter measuring accuracy:

- ±0.4% (indentation diameter)

- ±0.8% (indentation diameter)

- ±1.2% (indentation diameter)

Camera:

- Sensor: 1/3.2” CMOS

- Pixel: 2M (resolution 1600x1200)

- View filed: 8x6mm

Dimension: 170x54x54mm

Weight: 385kg

Standard delivery:

- Main unit: 1pc

- Software: 1pc

- 5mm standard indentation block: 1pc

- 10mm standard indentation block: 1pc

Optional accessory:

- 2.5mm standard indentation block: ISHB-MSA-BLOCK25
