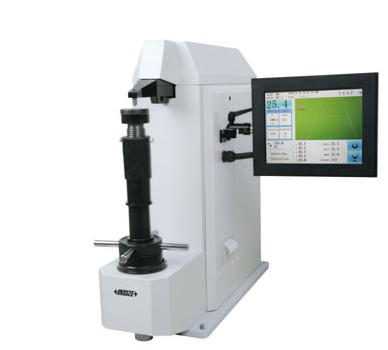

INSIZE ISHR-T500 Automatic Digital Superficial Rockwell Hardness Tester (29.4N/3kg; 441.3N)

Hardness scale:

- With standard indenters: RH15N, RH30N, RH45N, RH15T, RH30T, RH45T

- With optional indenters: RH15W, RH30W, RH45W, RH15X, RH30Y, RH45Y

Preliminary test force: 29.4N (3kg)

Total test force: 147.1N (15kg); 294.2N(30kg); 441.3N(45kg)

Conversion scale:  HR, HK, HB, HV

Stage elevation: manual

Load control: high speed close-loop system automatic loading (load/dwell/unload)

Load dwell time: 0~99 sec

Resolution: 0.1HR

Data output: built-in printer, RS232

Max. workpiece height: 260mm

Max. workpiece depth: 150mm (from the center of indenter to the main body)

Power supply: 110/220V, 50/60Hz

Dimension: 700x260x700mm

Weight: 85kg

Standard delivery:

- Main unit: 1pc

- Φ60mm flat anvil: 1pc

- Φ150mm flat anvil: 1pc

- V-type anvil: 1pc

- Diamond indenter: 1pc

- Φ1.5875mm carbide ball indenter: 1pc

- Hardness test block HRB88~95: _

- Hardness test block HRC20~30: _

- Hardness test block HRC40~50: _

- Hardness test block HRC60~65: _

- Hardness test block 78~88HR15N: 1pc

- Hardness test block 55~73HR30N: 1pc

- Hardness test block 57~69HR30T: 1pc

Optional accessory:

- Hardness test block HRB88~95

- Hardness test block HRC20~30

- Hardness test block HRC40~50

- Hardness test block HRC60~65

- Hardness test block 78~88HR15N

- Hardness test block 55~73HR30N

- Hardness test block 57~69HR30T

- Small V type anvil

- Connection cable and software
