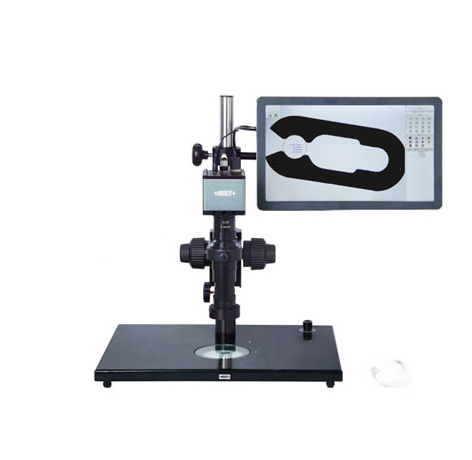

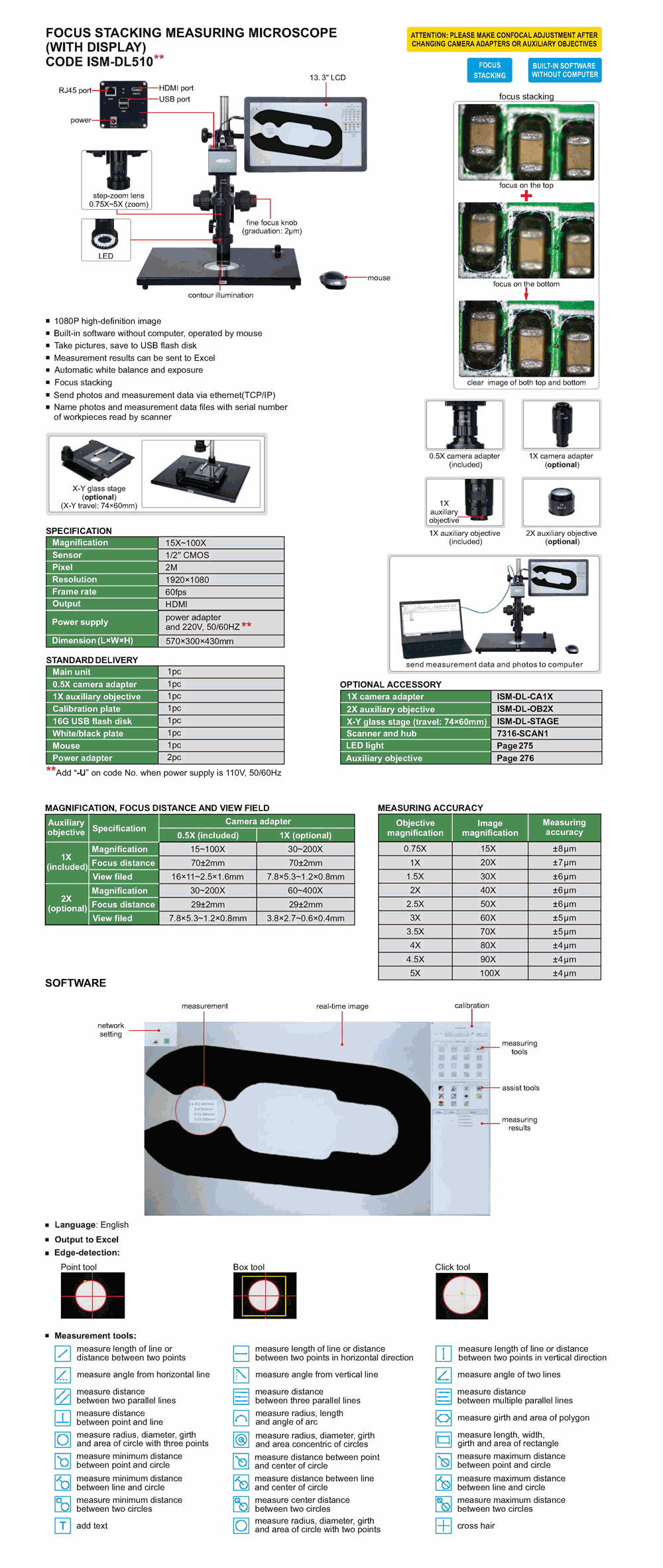

INSIZE ISM-DL510 Focus Stacking Measuring Microscope (with display) (15X~100X)

Magnification: 15X~100X

Sensor: 1/2” CMOS

Pixel: 2M

Resolution: 1920x1080

Frame rate: 60fps

Output: HDMI

Power supply: power adapter and 220V, 50/60Hz

Dimension (LxWxH): 570x300x430mm

Measuring accuracy: ±4μm~±8μm

Objective magnification: 0.75X~5X

Image magnification: 15X~100X

Standard delivery:

- Main unit: 1pc

- 0.5X camera adapter: 1pc

- 1X auxiliary objective: 1pc

- Calibration plate: 1pc

- 16G USB flash disk: 1pc

- White/black plate: 1pc

- Mouse: 1pc

- Power adapter: 1pc

Optional accessory:

- 1X camera adapter: ISM-DL-CA1X

- 2X auxiliary objective: ISM-DL-OB2X

- X-Y glass stage (travel:74x60mm):ISM-DL-STAGE

- Scanner and hub: 7316-SCAN1

- LED light: Page 275

- Auxiliary objective: Page 276
