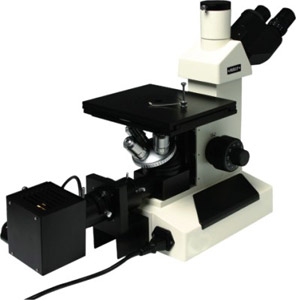

INSIZE ISM-M1000 金相显微镜 (10X )

- For high magnification observation

- Kohler illumination system provides uniform illumination field

- Objectives 20X, 40X, 100X are spring type.

- Eyepiece: 10X

- Objective: 10X, 20X, 40X, 100X

- Numerical aperture: 025, 0.40, 0.60, 1.25

- Working distance: 8.8mm, 8.6mm, 3.3mm, 0.33mm

- Stage: size 180x150mm, travel 15x15mm

- PuPil distance: 53-75mm

- Diopter adjustment: +/- 5 diopter

- lllunmination: 6V/20W halogen lamp

- Power supply: 220V, 50/60Hz

- Dimension: 385x300x440mm

- Weight: 11 kg
