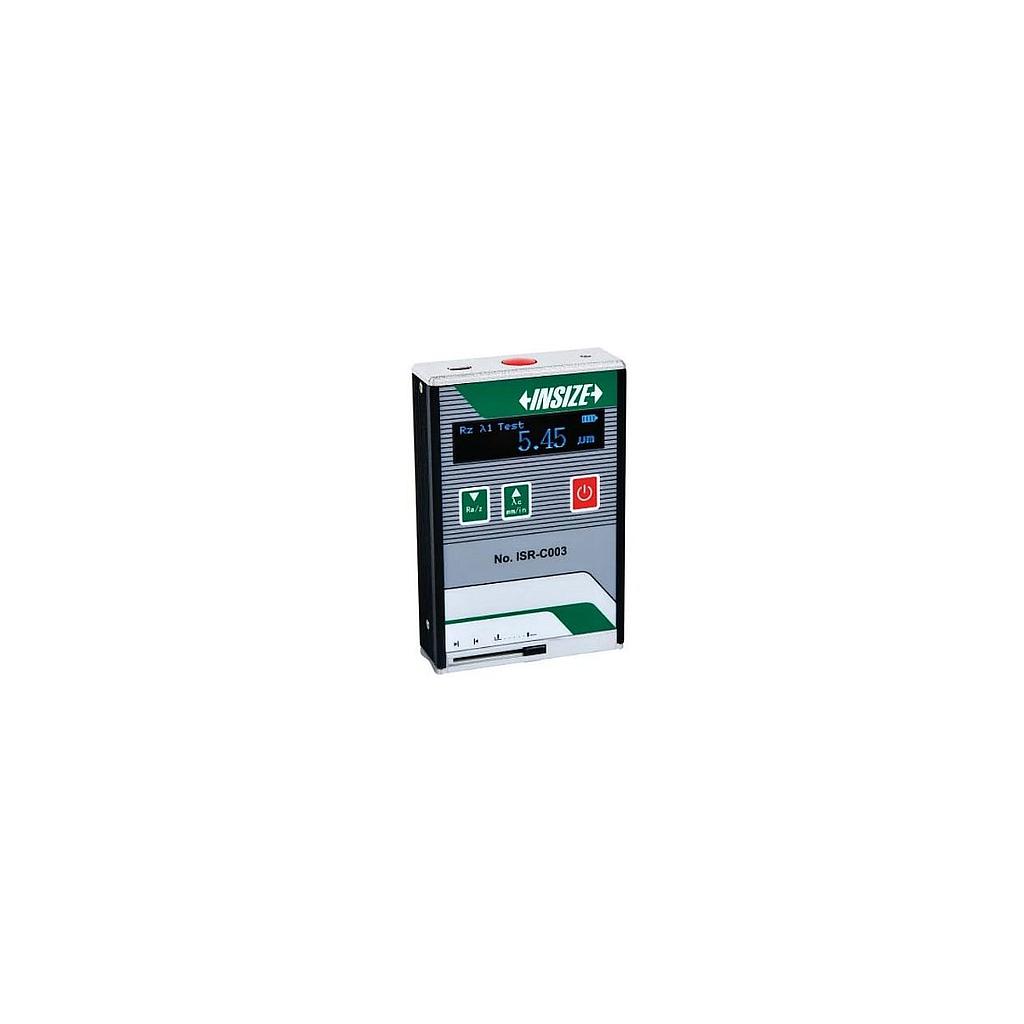

INSIZE ISR-C003 粗糙度仪

Unit: µm/µin

Automatic power off

Parameters:  Ra, Rz, Rq, Rt

Range: Ra, Rq: 0.05-15µm, Rz, Rt: 0.1-50µm

Accuracy: ±10%

Resolution (Ra): 0.01µm

Probe type: piezoelectric

Probe Stylus radius/ angle: 10µm/90 °

Probe stylus material: diamond

Measuring force: 5mN

Measuring unit: µm/µin

Cut off: 0.25/0.8/2.5mm

Evaluation length: 1.25mm for cut off 0.25mm

             4mm for cut off 0.8mm

             5mm for cut off 2.5mm

Traverse speed: 0.75mm/s

Power: built-in rechargeable results

Dimension(L×W×H): 106x70x24mm

Weight: 200g



Details

Datasheet
