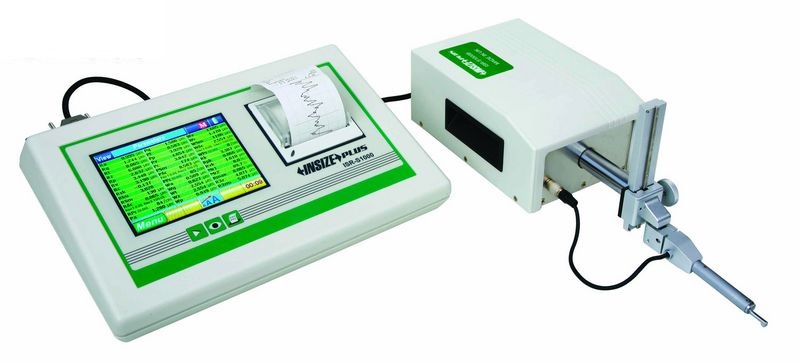

INSIZE ISR-S1000B 面粗さテスター

48 roughness parameters according to ISO-4287, JIS-B0601, ISO-12085, JIS-B0631

Automatic probe leveling

Measuring range up to 1000um, can measure grit and shot blasting.

Traverse length up to 50mm

The probe can rotate from -90 °to 90 °

Color touch screen, display, roughness values, profile and curves

Can print roughness values, profile and curves

Memory of maximum 1000 results

Can set tolerance

Parameters:  Ra, Rq, Rt, Rq, Rv, Rc, Rsk, Rku, RSm, Roc, RPc, Pa, Pq, Pp, Pc, Pv, Psm, Poc

PPc, Wa, Wq, Wt, Wz, Wq, Wv, Wc, Wsm, Woc, WPc, Rk, Rpk, Rvk, Mr1, Mr2, Rmax,

 R3z, R3zm, R, AR, Rx, Aw, Rke, Rvke, Mr1e, Mr2e

Range: 1000um

Accuracy: +-3%

Resolution (Ra): 0.001um

Probe type: inductive

Probe Stylus radius/ angle: 5um/90 °

Probe stylus material: diamond

Measuring force: 0.75mN

Measuring unit: um/uin

Cut off: 0.08/ 0.25/0.8/2.5/8mm

Numbers of cut-offs: 1-19 (cut off 0.08/0.25/0.8/2.5mm)

5 (cut off 8mm)

Traverse speed: 0.5mm/s or 1mm/s

Memory: 1000 measurement results

Output: USB

Power: built-in rechargeable results

Dimension: 320x210x80m

Weight: 2.2kg
