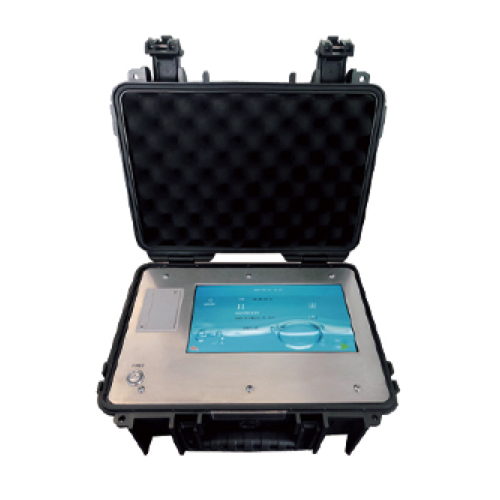

INSIZE PSC-BX300 便携式油粒计数器（标准型） (1~500µm, 40000 particles/mL)

Light source: Semiconductor laser

Particle size range: 1~500µm

Limit coincidence error: 40000 particles/mL

Offline detection of sample viscosity: ≤100cSt (optional pressure sampler for high viscosity)

Sensitivity: 0.8µm or 4µm (c)

Counting volume: 1~999mL (recommended 10 or 20 mL)

Counting accuracy: <10%

Protection level: IP67

Test time interval: 1s~24h

Working temperature: -20~60°C

Temperature of sample: 0~80°C

Water activity: 0~1aw

Water content: 0~360ppm

Offline detection speed: 5~60mL/min

Interface type: USB

Data store: 1000 sets of data; supports U disk storage

Online pressure detection: 0.1~0.6MPa (optional pressure reducing valve)

Power supply: AC 110-220V, 50~60Hz

Dimension (W×H×D): 365×295×170mm

Weight: 5.5kg
